RGBYIR & 1064nm 5050 SMD multi-Color LED for Phototherapy Facial Mask
This advanced phototherapy mask features 5050 SMD LEDs with a unique RGBYIR & 1064nm multi-wavelength system. It delivers comprehensive skin treatment: red for anti-aging, blue for acne, green/yellow for soothing, and IR/1064nm for deep tissue repair. An all-in-one solution for professional rejuvenation and healing at home
Features:
- 99.99% gold wire bonding
- Long life span 50,000 hours
- Good heat dissipation
- Low-temp & lead free reflow soldering
- Instant light(less than 100ns)
- RoHS certification
Technical Parameters: Electrical optical characteristics:(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Luminous intensity | Iv | 630nm
850nm
410nm
590nm | --- | 10
30
2.5
9 | --- | LM
mW
LM
LM | IF=60mA |
| Dominant wavelength | | 630nm
850nm
410nm
590nm | 620
840
400
585 | --- | 635
860
420
595 | nm | IF=60mA |
| Forward voltage | VF | 630nm
850nm
410nm
590nm | 1.8
1.3
3.0
1.8 | --- | 2.4
1.7
3.4
2.4 | V | IF=60mA |
| Viewing angle | | | --- | 120 | --- | deg | IF=60mA |
| Reverse current | IR | | --- | ---- | 5 | uA | IF=60mA |
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Luminous intensity | Iv | 830nm
625nm
590nm
410nm
1050 | --- | 25
10
9
2.5
10 | --- | mW
LM
LM
LM
mW | IF=60mA |
| Dominant wavelength | | 830nm
625nm
590nm
410nm
1050 | 825
620
590
410
1040 | --- | 830
625
595
415
1090 | nm | IF=60mA |
| Forward voltage | VF | 830nm
625nm
590nm
410nm
1050 | 1.3
1.8
2.0
3.0
1.4 | --- | 1.7
2.4
2.4
3.4
1.6 | V | IF=60mA |
| Viewing angle | | | --- | 120 | --- | deg | IF=60mA |
| Reverse current | IR | | --- | ---- | 5 | uA | IF=60mA
|

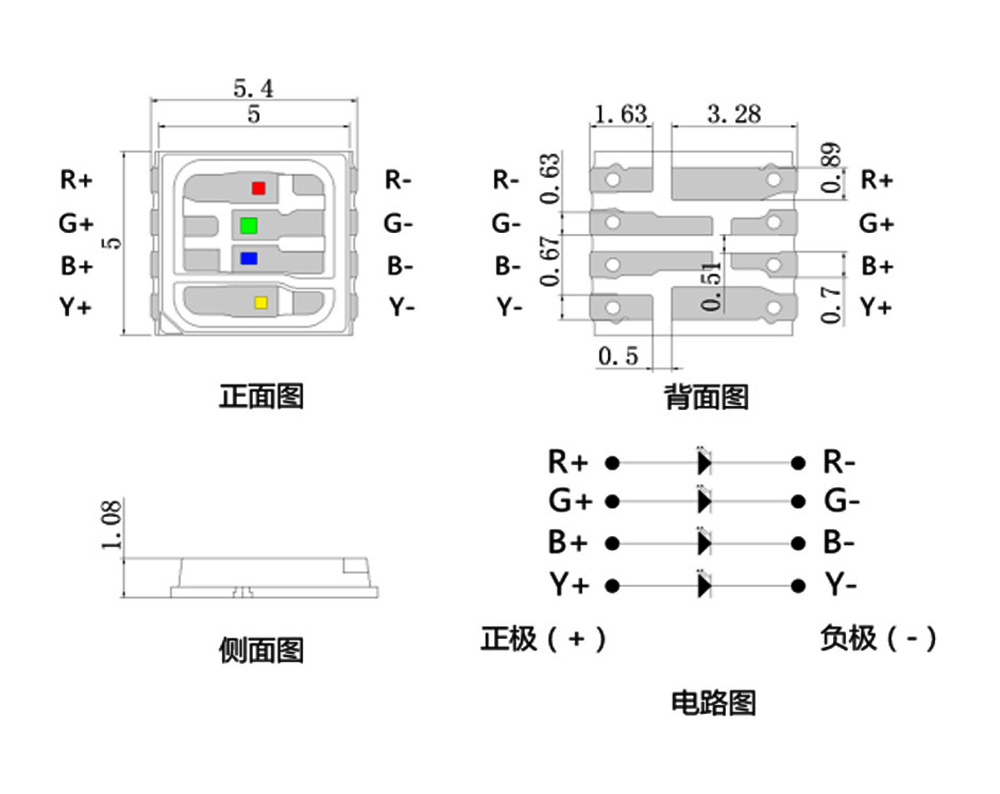

| Operation Temperature | －40~+85℃ | Size | 5.4*5.0*1.1mm |
| Storage Temperature | －40~+100℃ | Packing | 1000pcs/reel |
Customized Multi-color combined: 630+660+850nm ;
625+520+460+590nm;
625+850+460+590nm;
830+625+590+415+1050nm
Applications:
1. Beauty therapy lamp.
2.Wound healing lamp
3. Oxygen injector
4. Hair remover
3. Other medical device, like Oximeter
